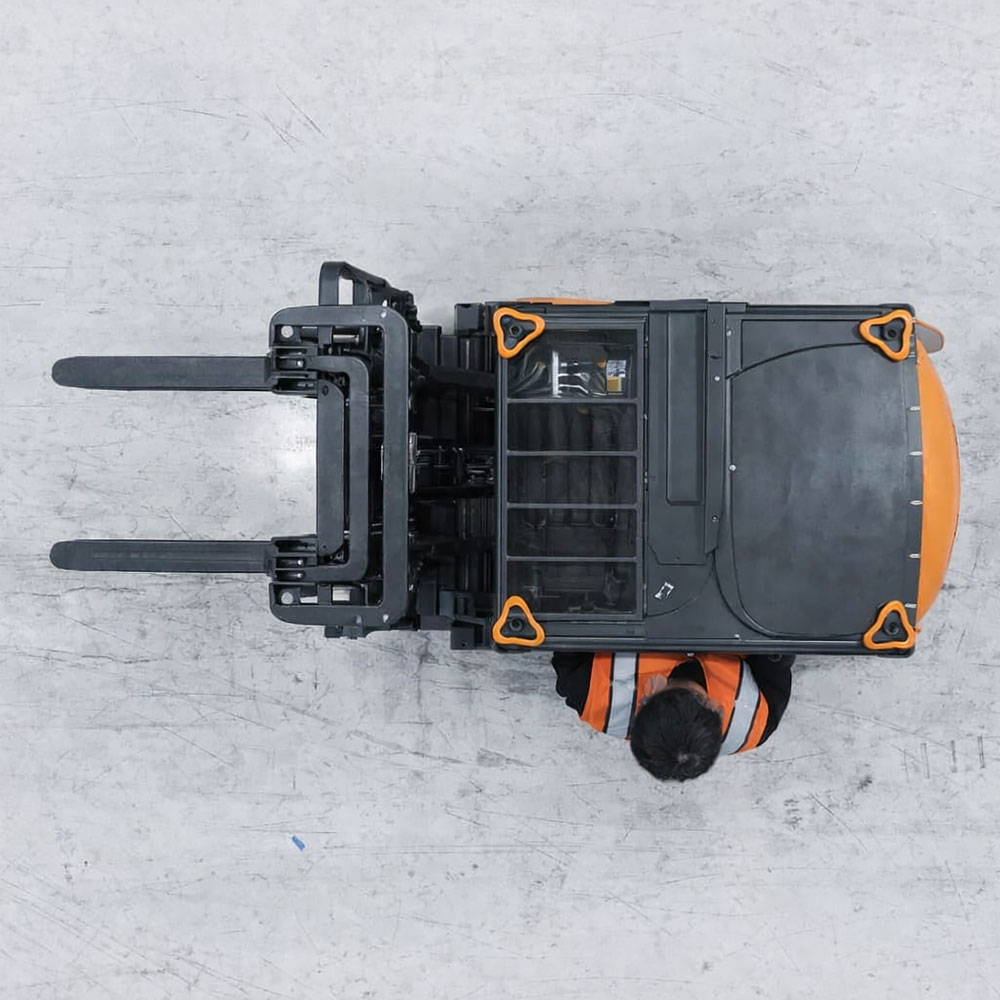

IPAS 2.0 Vehicle Tag
When a pedestrian or a vehicle in operation enters the Caution / Danger zone,
the Vehicle Tag (VT) detects the approach of the Pedestrian Tag (PT)
and outputs voice messages such as "Caution" or "Danger"
through the indicator installed at the driver's seat.
Options for the Vehicle Tag (VT) include Indicator Type, LED Alarm Type,
and EOD Integration, among others.
When a pedestrian or vehicle
enters the Caution / Danger zone,
the Vehicle Tag (VT) detects proximity
and provides voice alerts
such as “Caution” or “Danger”
through the indicator.
-
Vehicle Tag (VT) Specifications
Operating Power
DC 12 ~ 48 V(from IND+)
Current Consumption
MAX. 500 mA (DC 12 V)
Detection Range
MAX. 30 m
Dimensions
128 × 115 × 64.5 mm
Weight
329 g
Mounting Method
Magnetic Mount
Operating Temp
-30 ~ 75 ℃
IP Rating
IP 67
Detection Range
MAX. 30 m
Dimensions
128 × 115 × 64.5 mm
Weight
329 g
Mounting Method
Magnetic Mount
Operating Temp
-30 ~ 75 ℃
IP Rating
IP 67
Operating Power
DC 12 ~ 48 V(from IND+)
Current Consumption
MAX. 500 mA (DC 12 V)
Options
We provide optional equipment that can be additionally configured
to suit the site environment and working conditions.
Customizable Optional Equipment
Tailored to Your Site Environment
-

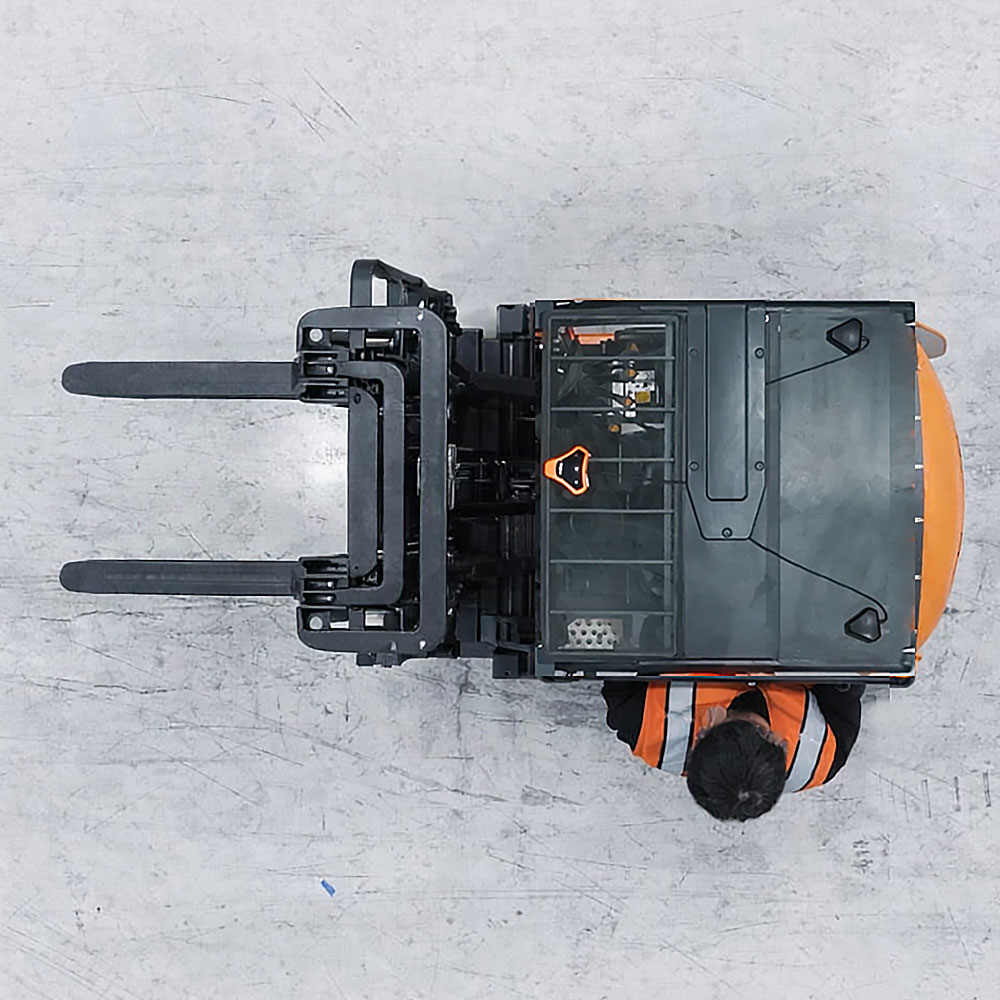

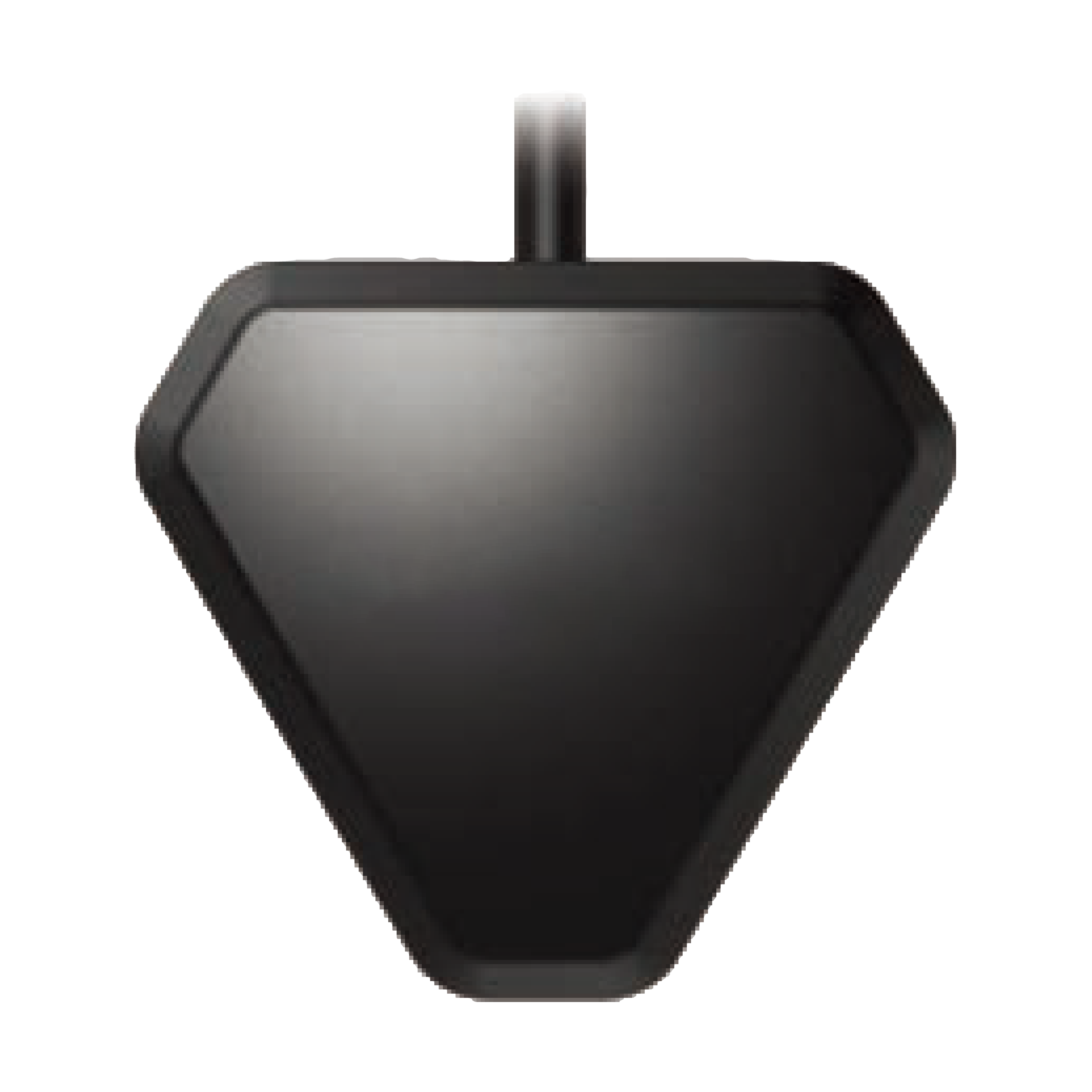

E-Mode Tag (EMT)
A product that allows for the setting of customized caution and danger zones based on the distance and angle between tags.
Operating Power
DC 12 ~ 48 V(from IND+)
Frequency Band
6.5 G Hz / 500 MHz BW
Detection Range
MAX. 30 m
Dimensions
92.3 × 83 × 60.75 mm
Mounting Method
Magnetic Mount
Operating Temp
-30 ~ 85 ℃
IP Rating
IP 67
Mounting Method
Magnetic Mount
Operating Temp
-30 ~ 85 ℃
IP Rating
IP 67
Detection Range
MAX. 30 m
Dimensions
92.3 × 83 × 60.75 mm
Frequency Band
6.5 G Hz / 500 MHz BW
Operating Power
DC 12 ~ 48 V(from IND+)
-

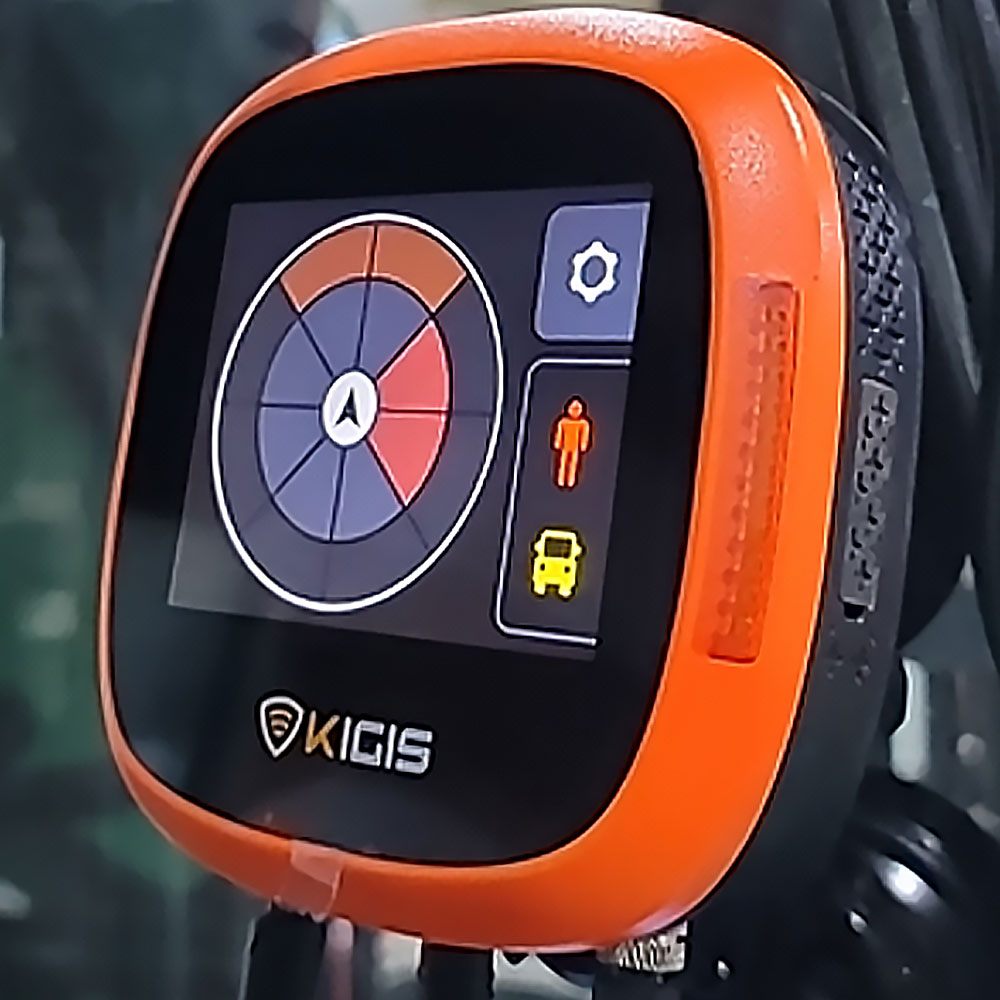

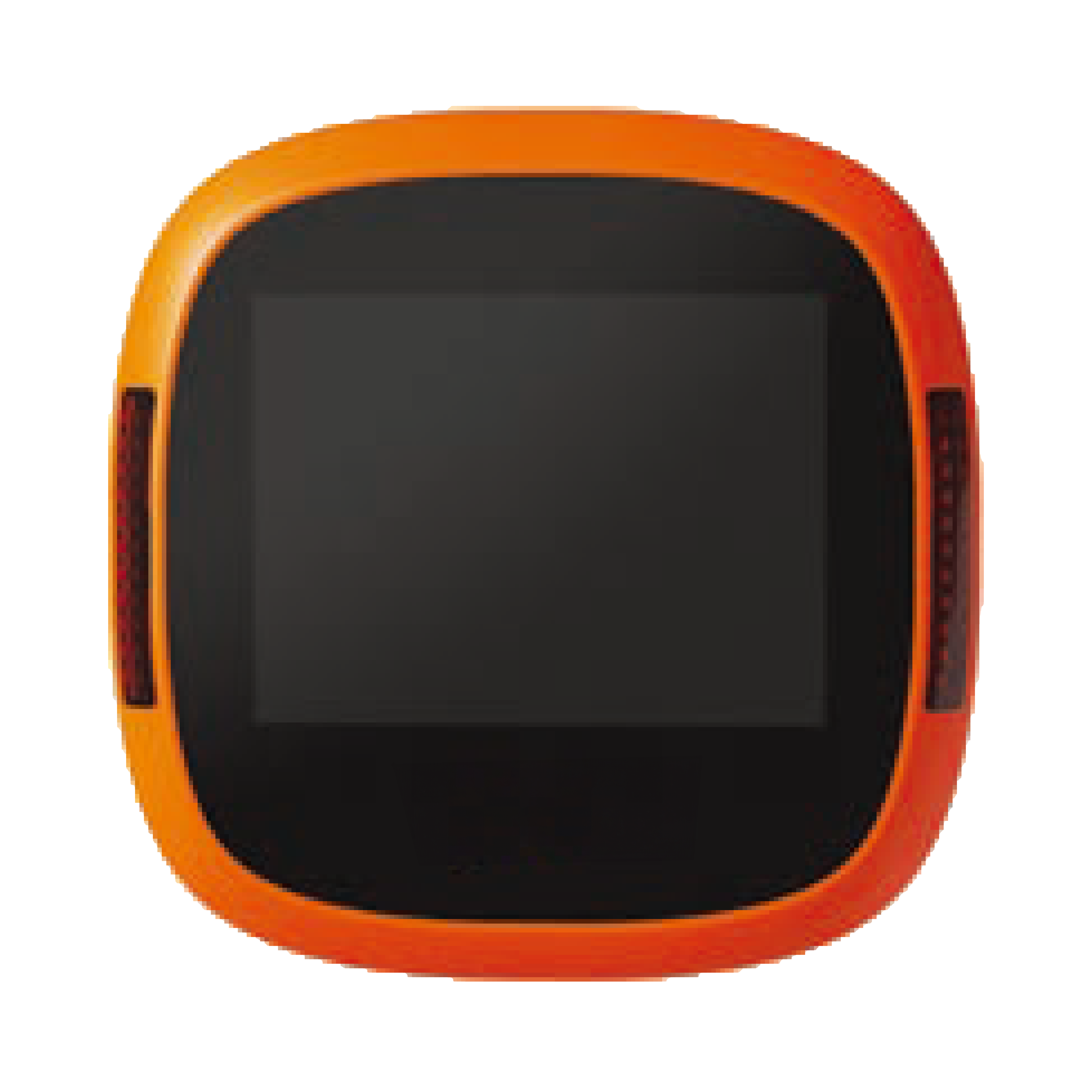

Indicator +
Installed inside the vehicle, this device provides caution and danger alerts upon detecting pedestrians or other vehicles.
It features LED indicators, speaker alarms, and can be controlled via an LCD touch screen.Installed inside the vehicle,
it detects pedestrians or vehicles and provides caution/danger alerts.
Features LED indicators, speaker alarms,
and LCD touch control.Operating Power
DC 12 ~ 48 V
IP Rating
IP 65
Alarm Type
LED Flashing
Dimensions
110 × 110 × 35.2 mm
Mounting Method
VESA Mount
Operating Temp
-20 ~ 70 ℃
Current Consumption
MAX. 500 mA (DC 12 V)
