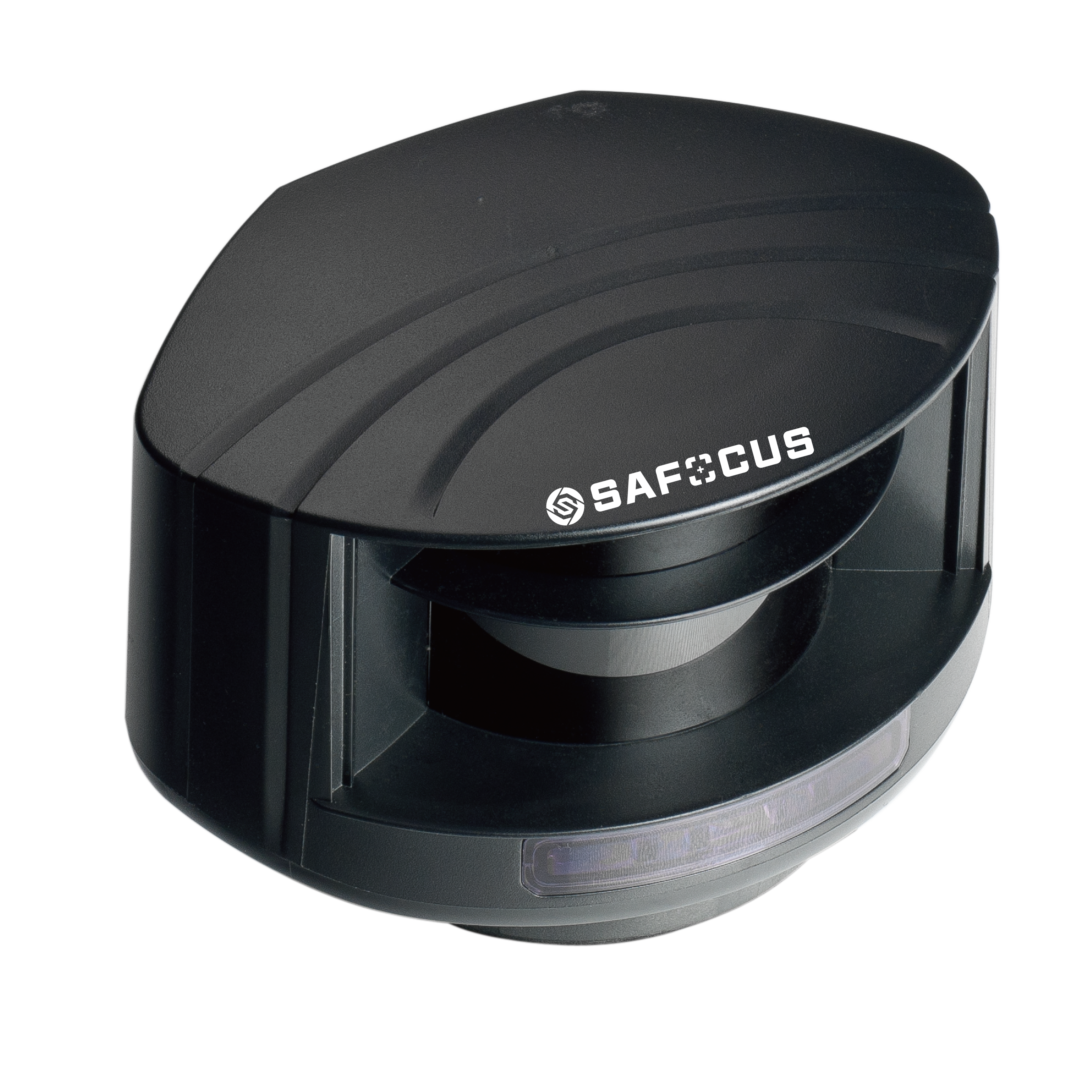

SIDE SCAN
When a designated target (such as a person or a forklift) is detected in areas with operating machinery,
including conveyor belts and automated facilities,
the system immediately controls machinery operation
or activates hazard alerts through optional products.
Note: Additional optional products tailored to each configuration
can be integrated according to the situation.
Detects people and forklifts in active equipment zones
to trigger machine stops or warning alarms.
Integrates various optional equipment
to suit your specific needs.
-

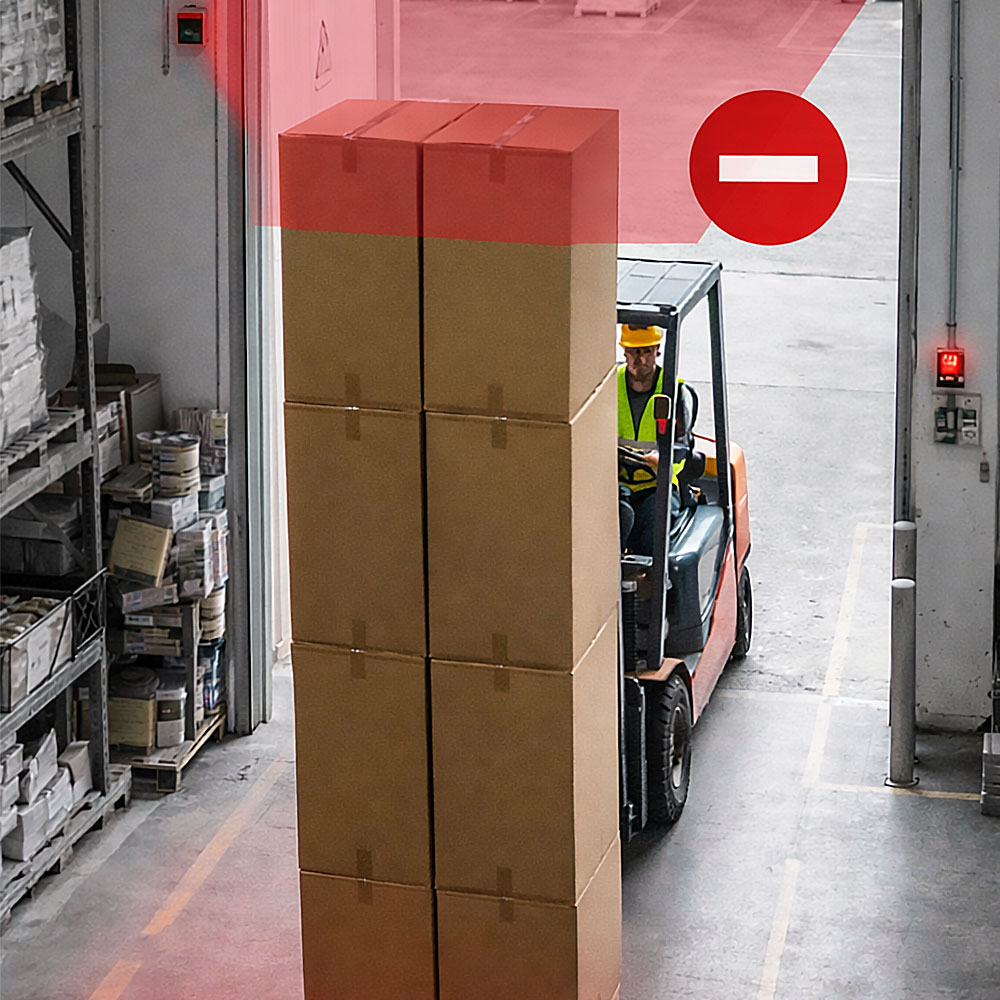

Laser Scanner
It prevents accidents by detecting personnel and forklifts within the work area, controlling machinery operation accordingly.
It also detects and controls stacking height limit exceedance.Operating Power
DC 12 ~ 24 V
Current Consumption
30 W
Detection Range
1 cm ~ 25 m
Dimensions
93 × 70 × 125 mm
Weight
360 g
Operating Temperature
-30 ~ 85 ℃
IP Rating
IP 65
Operating Power
DC 12 ~ 24 V
Current Consumption
30 W
Detection Range
1 cm ~ 25 m
IP Rating
IP 65
Weight
360 g
Operating Temperature
-30 ~ 85 ℃
Dimensions
93 × 70 × 125 mm
-

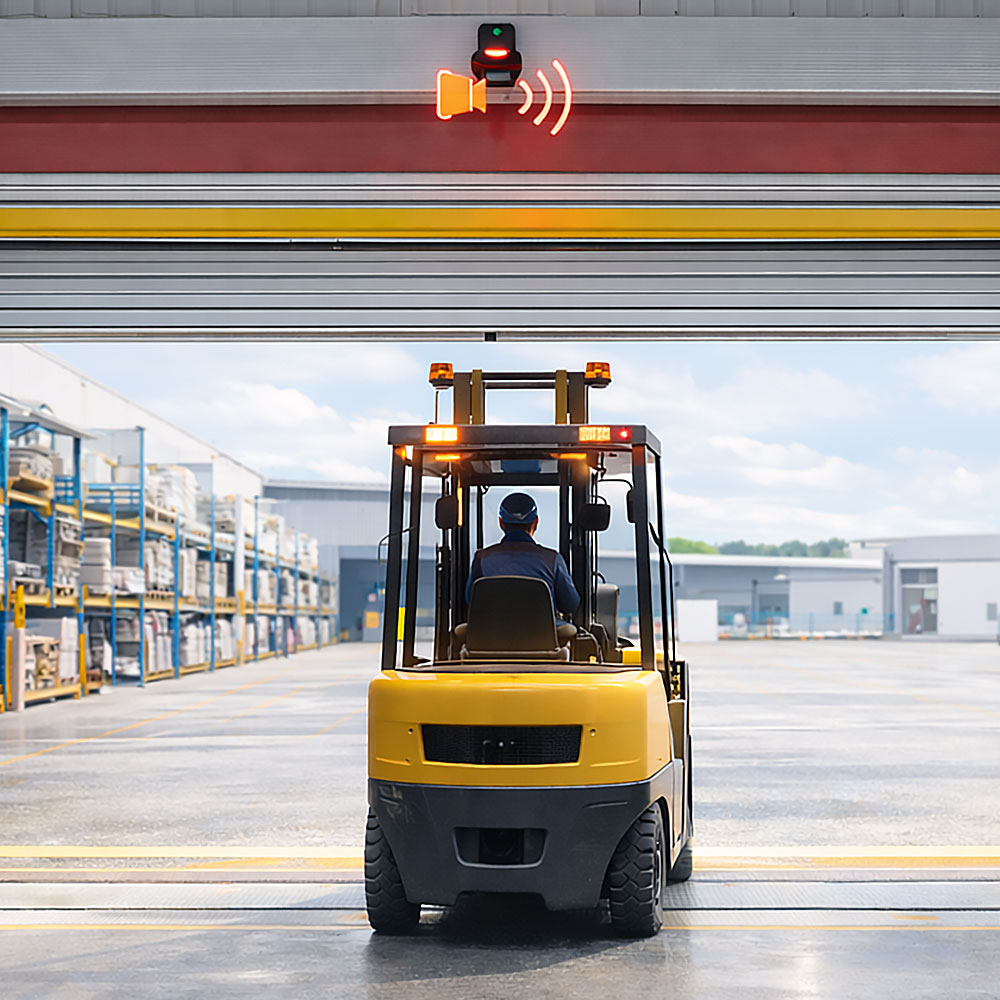

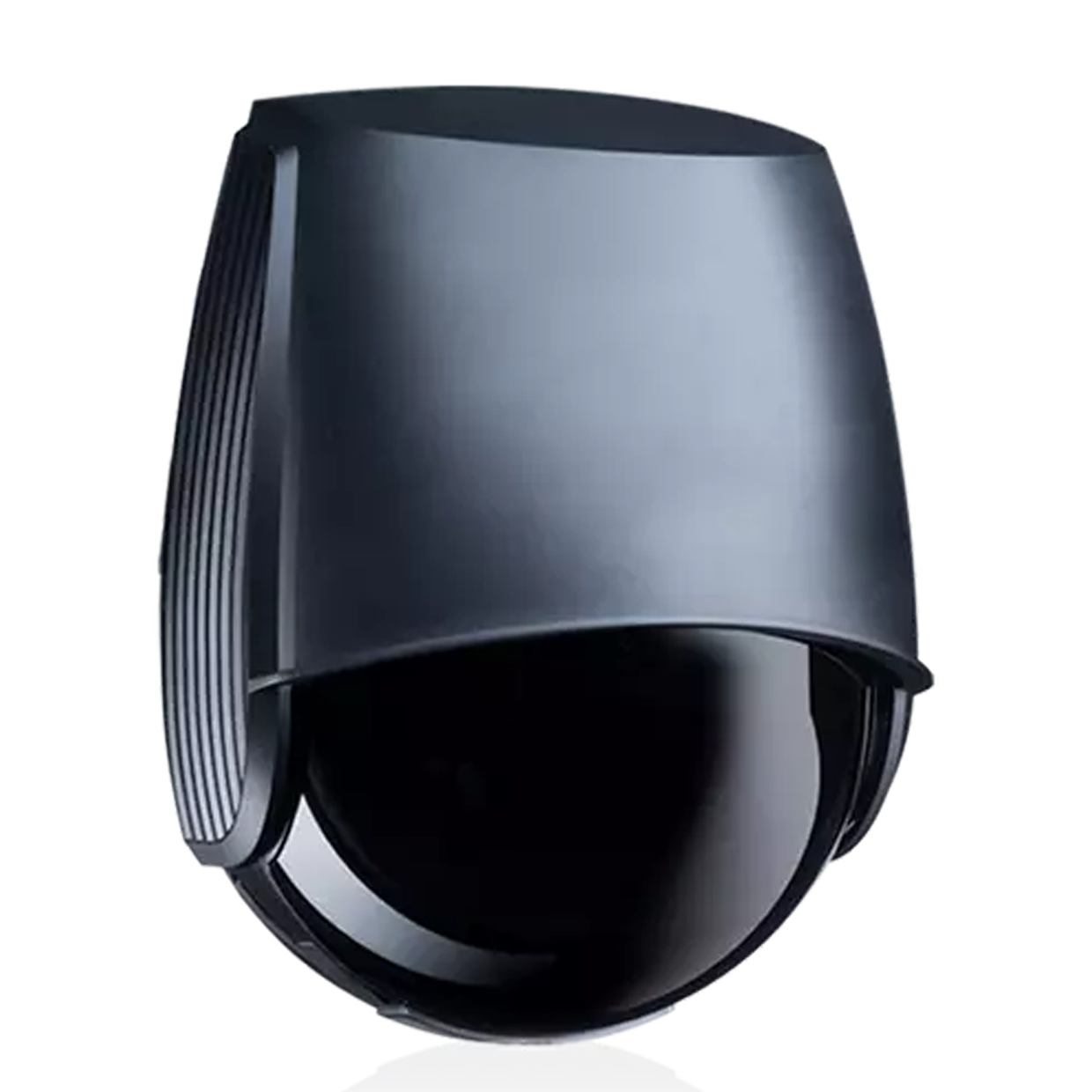

WIDE SCAN
Utilizing seven laser curtains, this device divides a wide detection area into three zones, and individually detects both personnel and vehicles.
Operating Power
DC 12 ~ 30 V
Current Consumption
15 W
Rec. Height
2 ~ 6 m
Detection Area
W = H × 1 / D = H × 1 (Adjustable)
Dimensions
200 × 150 × 100 mm
Operating Temperature
-30 ~ 60 ℃
IP Rating
IP 65
Operating Power
DC 12 ~ 30 V
Current Consumption
15 W
Rec. Height
2 ~ 6 m
IP Rating
IP 65
Dimensions
200 × 150 × 100 mm
Operating Temperature
-30 ~ 60 ℃
Detection Area
W = H × 1 / D = H × 1 (Adjustable)
-

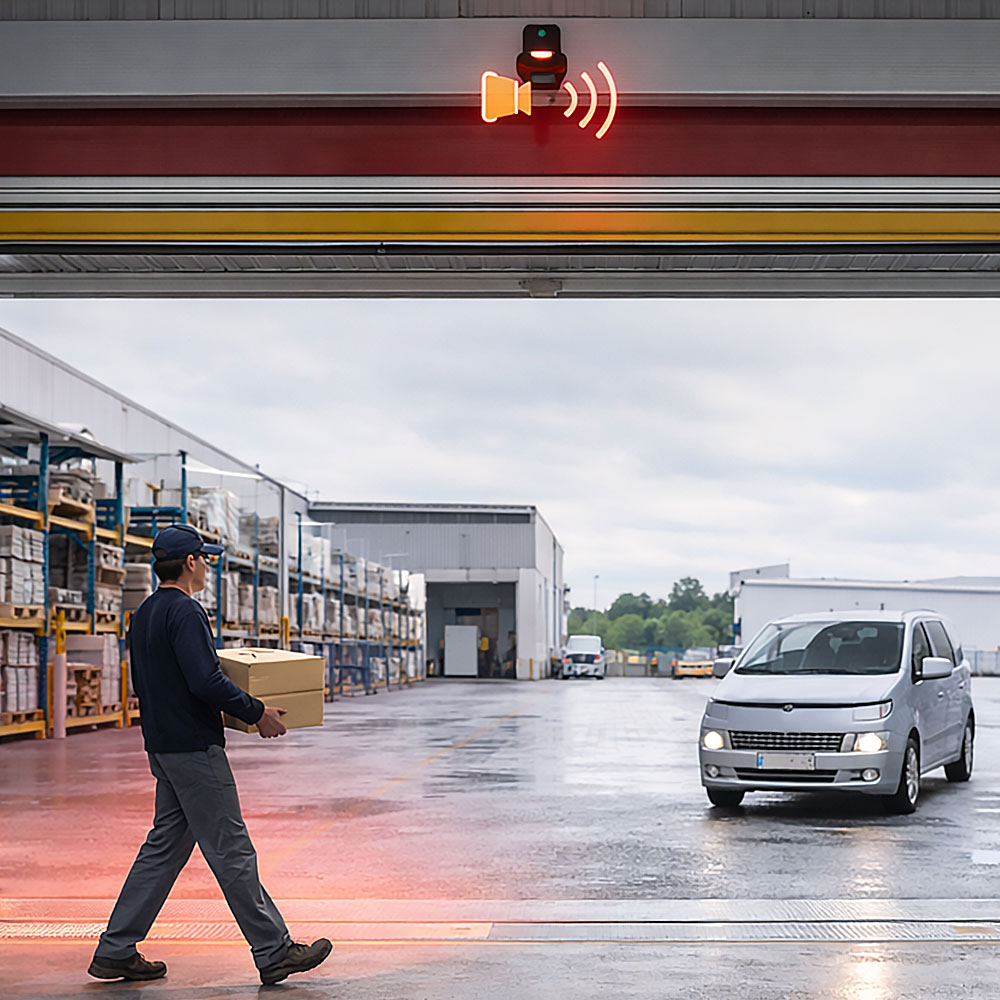

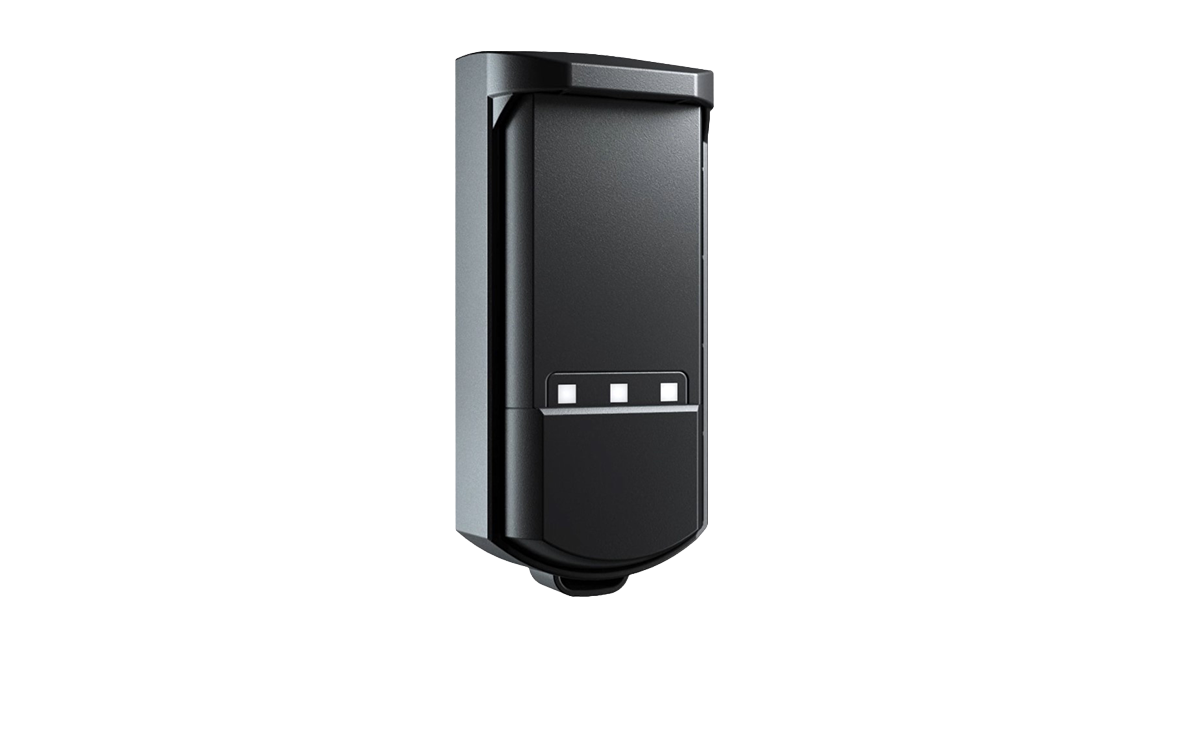

EVOLOOP
A sensor that detects vehicle movement and presence.
Operating Power
DC 12 ~ 30 V
Current Consumption
30 W
Maximum Detection Area
Maximum 7 m
Detection Angle
Horizontal 140° / Vertical 40°
Dimensions
50 × 150 × 68 mm
Operating Temperature
-25 ~ 55 ℃
IP Rating
IP 65
Operating Power
DC 12 ~ 30 V
Current Consumption
30 W
Maximum Detection Area
Up to 7 m
IP Rating
IP 65
Dimensions
50 × 150 × 68 mm
Operating Temperature
-25 ~ 55 ℃
Detection Angle
Horizontal 140° / Vertical 40°
Options
We provide optional equipment that can be additionally configured
to suit the site environment and working conditions.
Provides optional equipment that can be additionally configured
to suit various site environments.
-
Projector
A safety assistance device that prevents collision accidents by projecting images onto the site floor.
Product Type
300W FANLESS 200W 300W 400W 600W Operating Power
AC 220V / 60Hz Visible Light Output
90 lm/W Color Temperature 8000-9000 K LED Manufacturer OSRAM LED Lifetime 40,000 h IP Rating IP 66 IP 67 Lens Options 13 ° / 20 ° / 30 ° / 53.5 ° Weight 15 kg 10 kg 16 kg -
Line Light - Basic Line
A safety indication product that forms linear guides on the floor, clearly distinguishing working areas and movement paths.
Operating Power
DC 10 ~ 90 V
LED Lifetime
50,000 h
Color
Green, Orange, Red
IP Rating
IP 65
Current Consumption
Red: 21.5 W / Blue: 36 W
-
Line Light - Pro Line
A safety indication product that clearly distinguishes working areas and movement paths by forming linear guides on the floor.
Operating Power
AC 100 ~240 V
LED Lifetime
30,000 h
Color
Green, Orange, Red
IP Rating
IP 40
Current Consumption
50 W
-
Line Light - U Line
A safety indication product that clearly distinguishes working areas and movement paths by forming curved (U-shaped) guides on the floor.
Operating Power
DC 10 ~ 80 V
LED Lifetime
30,000 h
Color
Green, Orange, Red
IP Rating
IP 67
Current Consumption
16 W
-
Flash Light
A safety product that alerts individuals to hazardous situations through warning signals in low-visibility areas.
Operating Power
DC 24 V, AC 110 V / 220 V
LED Lifetime
50,000 h
Color
Red
IP Rating
IP 66
Current Consumption
12 W / 24 W
Brightness
1,150 lm ~ 2,210 lm
Current Consumption
12 W / 24 W
LED Lifetime
50,000 h
Color
Red
IP Rating
IP 66
Brightness
1,150 lm ~ 2,210 lm
Operating Power
DC 24 V, AC 110 V / 220 V
-
LED Bar
A visual safety solution using LED bar lights to clearly mark work area perimeters and pedestrian pathways.
Operating Power
DC 24 V
Color
Red / Green / Orange (4 wire)
Current Consumption
14 W
Dimensions
18 × 10 × 4,000 mm
Detection Height
4 m (extendable in 1 m increments)
IP Rating
IP 20 / IP 65
Operating Power
DC 24 V
Color
Red / Green / Orange (4 wire)
Current Consumption
14 W
IP Rating
IP 20 / IP 65
Detection Height
4 m (extendable in 1 m increments)
Dimensions
18 × 10 × 4,000 mm
-
Laser
A laser guidance device that projects lines onto the floor to demarcate work areas and provide clear path indications.
Operating Power
Minimum 100 mA
Color
Red or Green
Lifetime
10,000 h
Laser Line Thickness
30 mm ~ 80 mm
Weight
0.2 kg
IP Rating
IP 67
-
CPC
A floor-projection safety marking device available in S/M/L sizes to suit various site environments and application ranges.
Green Light 200W 300W 400W Current Consumption
27 W
68 W
88 W
88 W
Diameter at 5 m height
-
2 m
3 m
4 m
Diameter at 10 m height
-
4 m
6 m
8 m
-
Arrow Light
A directional safety marking device that provides intuitive guidance by projecting directional arrows onto the floor.
Operating Power
DC 10 ~ 80 V
LED Lifetime
50,000 h
Current Consumption
Min. 3 W / Max. 27 W
Operating Power
- 40 ~ 80 ℃
Color
Red, Blue, Green
IP Rating
IP 67
-
Traffic Light
Used in various sites such as crosswalks, cranes, and roads, this signal guidance device prevents collisions between pedestrians and vehicles.
-
Display Panel
A customizable display device that allows users to configure text, images, and dimensions according to the site environment.
-
Voice Alarm System
A voice alarm device that delivers immediate warnings to workers through voice guidance in dangerous situations.
Operating Power
DC 12 ~ 35 V
Detection Area
3.0m × 3.5m (at 2m height)
Current Consumption
MAX 100 mA
Dimensions
164 × 111 × 94.5 mm
Operating Power
DC 12 ~ 35 V
Current Consumption
MAX 100 mA
Dimensions
164 × 111 × 94.5 mm
Detection Area
3.0m × 3.5m (at 2m height)
-
SAPASS - Straight Type, Folding Type, Fence Type
A safety barrier system that prevents accidents within work zones by restricting access upon vehicle detection.
Operating Power
AC 220 V
Opening Angle
90 °
Current Consumption
MAX. 150 W
Dimensions
335 × 280 × 1050 mm
Detection Target
Vehicle Tag (VT)
Weight
Approx.70kg
Detection Distance
1 ~ 30 m
Operating Power
-30 ~ 80 ℃
Fequency
4.5 GHz
Operating Humidity
10 ~ 90 %(Non-Condensing Conditions Only)
Operating Power
AC 220 V
Opening Angle
90 °
Current Consumption
MAX. 150 W
Fequency
4.5 GHz
Detection Target
Vehicle Tag (VT)
Weight
Approx.70kg
Detection Distance
1 ~ 30 m
Operating Power
-30 ~ 80 ℃
Dimensions
335 × 280 × 1050 mm
Operating Humidity
10 ~ 90 %(Non-Condensing Conditions Only)
-
SAPASS - Gate Type
A safety barrier system that prevents accidents within work zones by restricting access upon vehicle detection.
Operating Power
DC 24 V
Current Consumption
40 ~ 60 W
Travel Speed
0.8 ~ 1 s
Operating Power
-15 ~ 70 ℃
Detection Area
3.0m × 3.5m (at 2m height)
Dimensions
164 × 111 × 94.5 mm
